Specifications
| Pressure ratio | 6 mVs |
|---|---|
| Frame: | Stainless steel EN 1.4301 or acid-proof steel EN 1.4404 |
| Valve plate: | Stainless steel EN 1.4301, acid-proof steel EN 1.4404 |
| Spindle: | Stainless steel EN 1.4301, acid-proof steel EN 1.4404 |
| Bushing: | Bronze 25 QOB A R (zinc-free) |
| Rails in valve frame: | PEHD plastic |
Grate channel valve
Type number: AQ.017.001

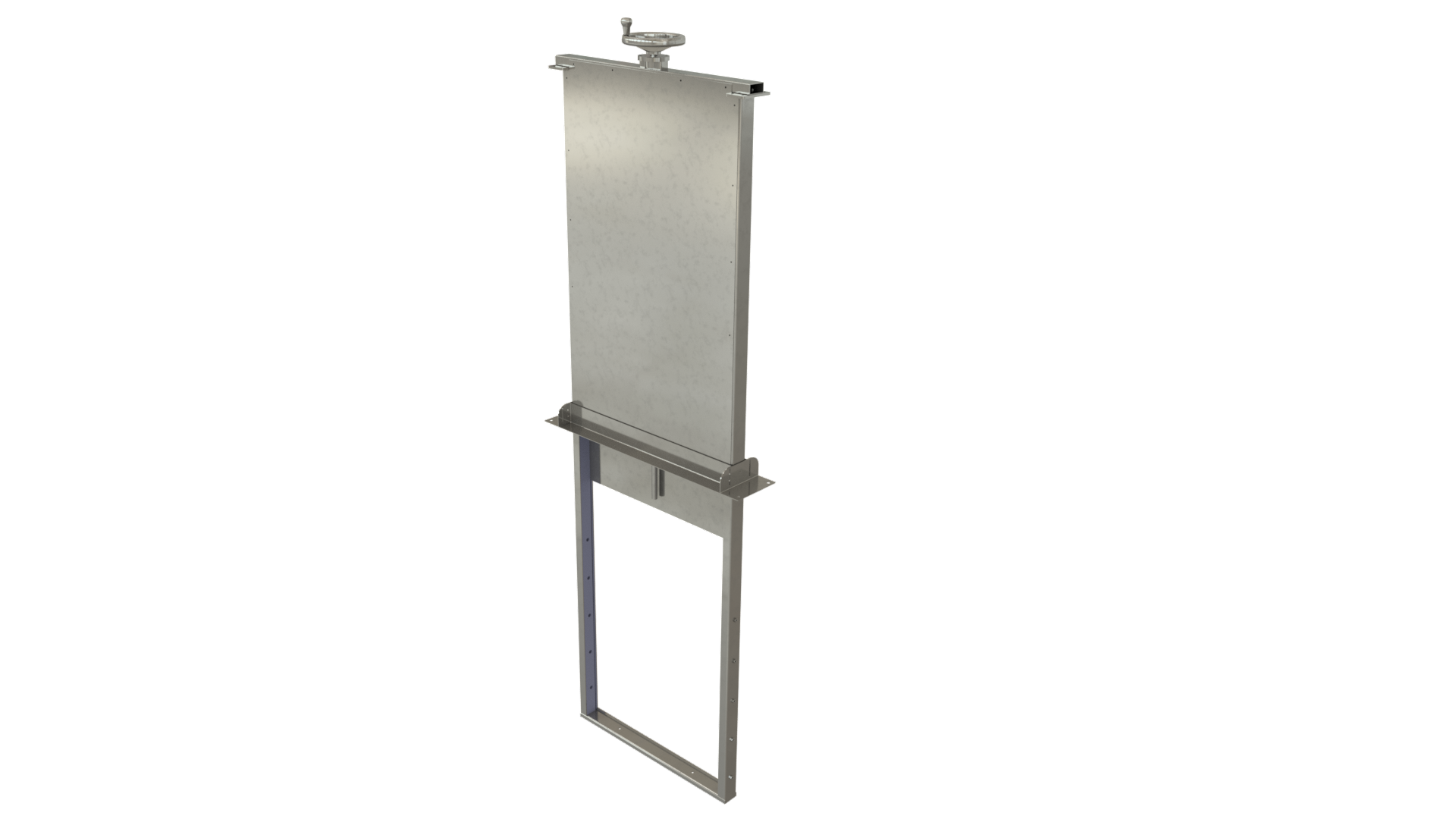

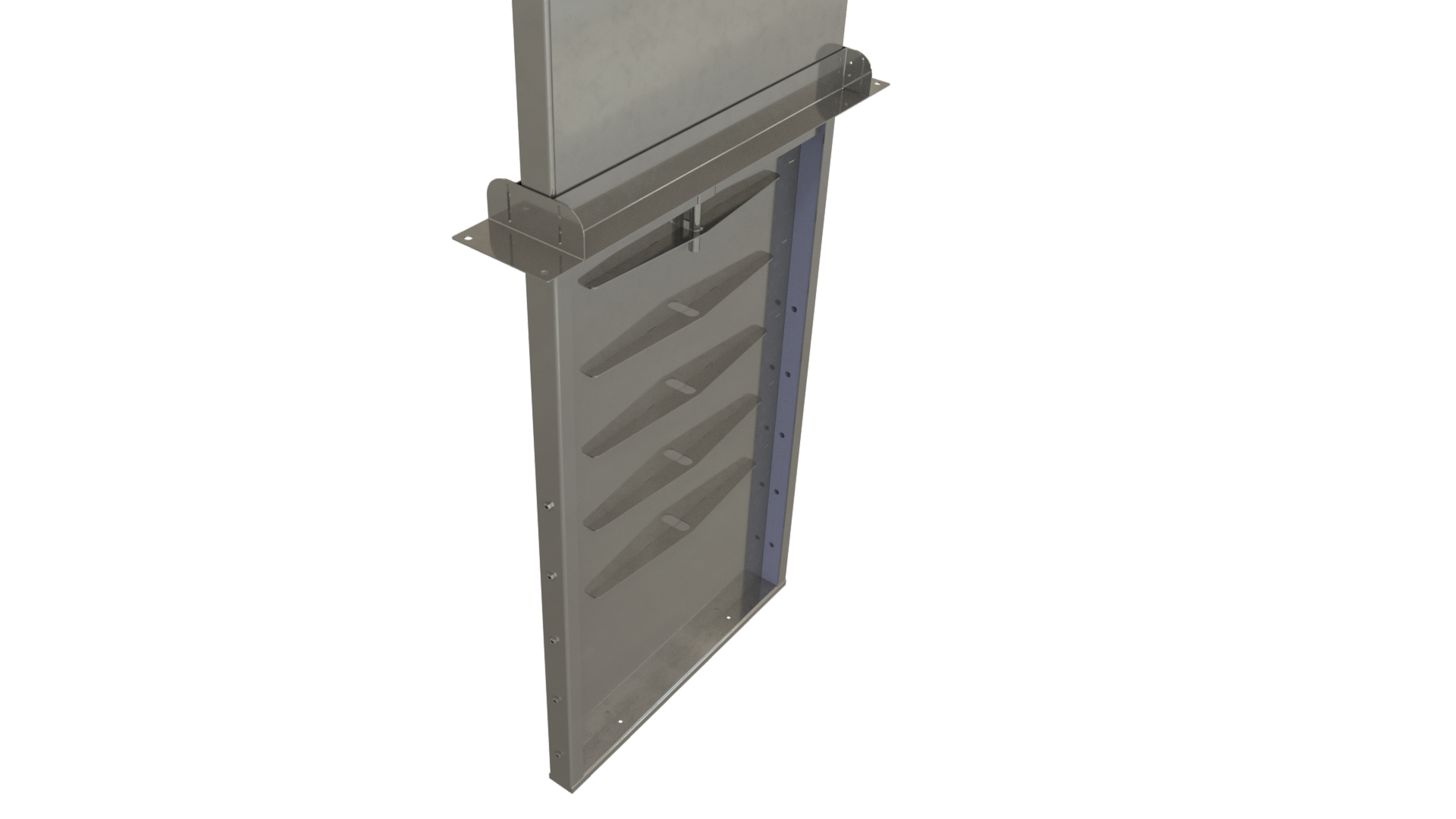

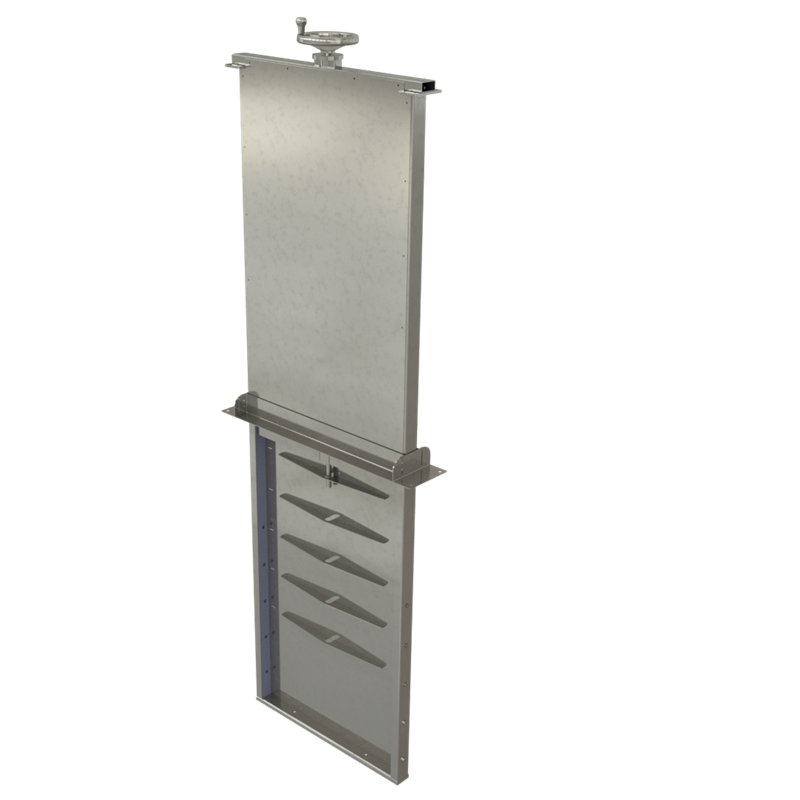

The AQ.017.001 grate channel valve is used to shut off the grating structure before and after the grate.

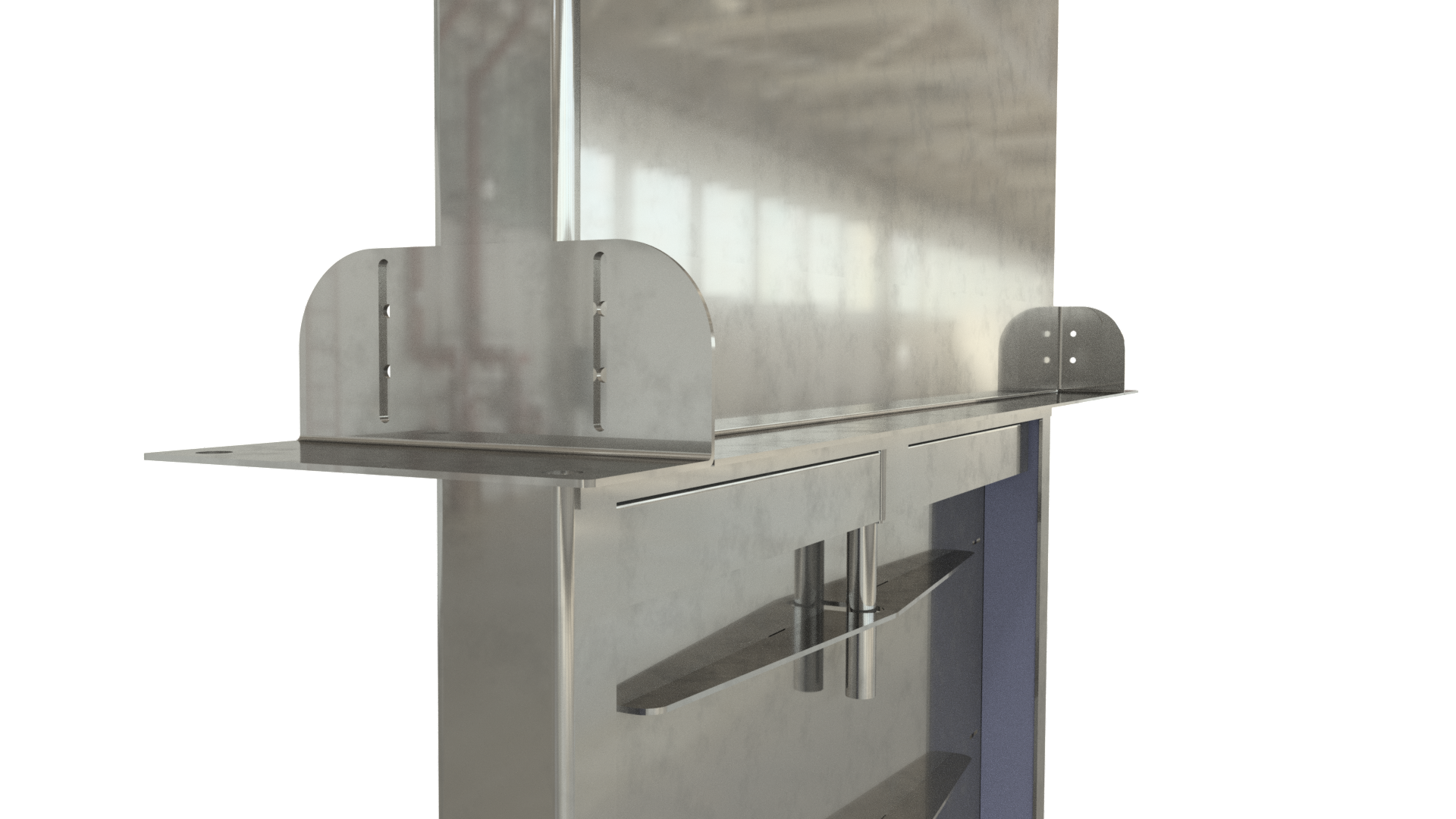

The product is available with a frame profile in either stainless EN 1.4301 or acid-proof EN 1.4404 and PEHD guide profiles for the valve plate. Above floor level, the valve is shut-off with plates on both sides to shield against possible media and odour nuisance. The product is ready for embedding.

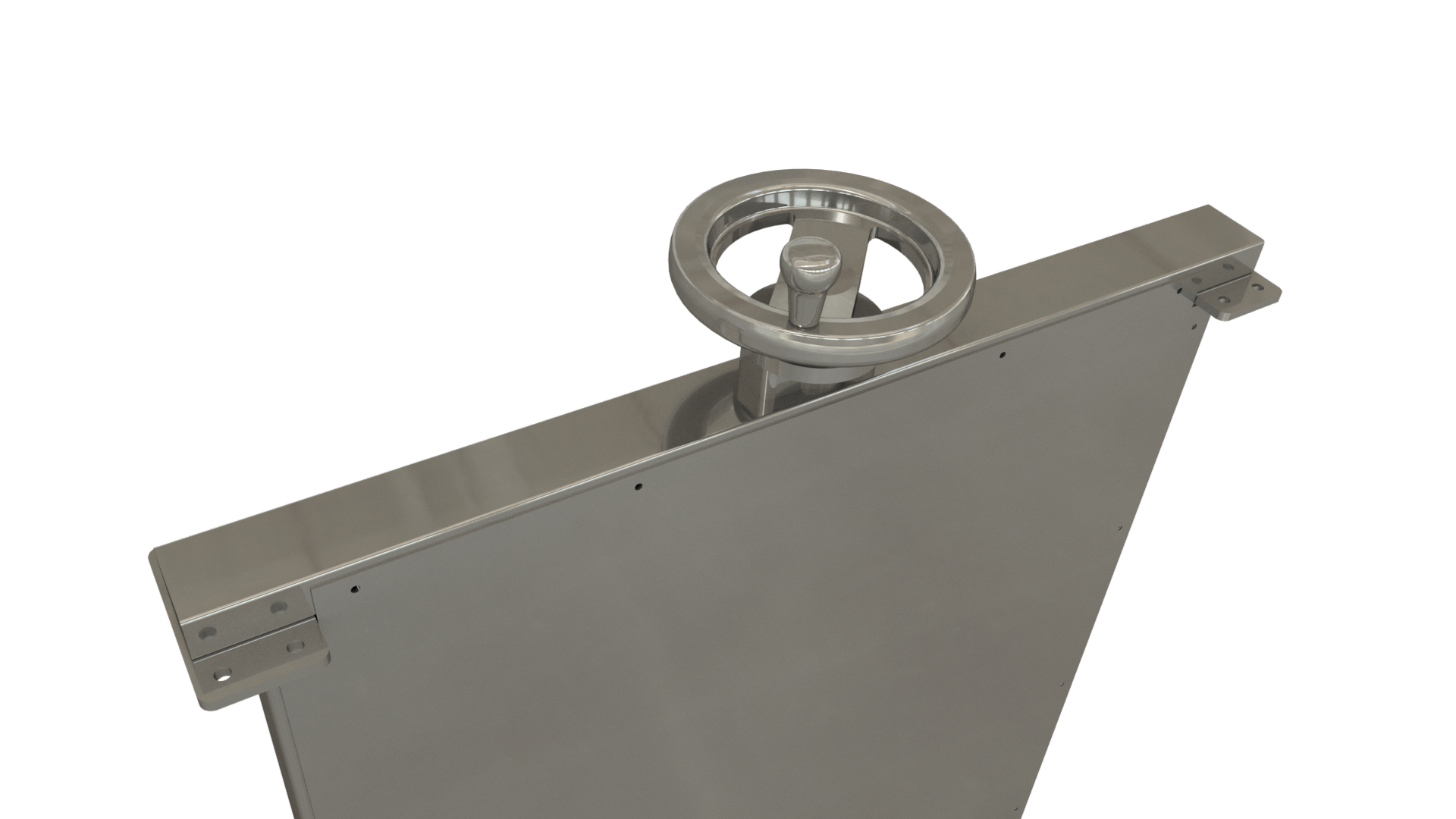

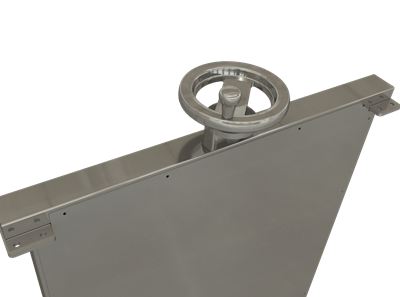

Aquagain offers the AQ.017.001 grate channel valve with 1:1 or 1:2 angular gear, AUMA gear or hand wheel: regardless of the type, the product is prepared for its installation. The spindle is an M25 non-rising trapezoidal spindle. The rise of the spindle is 5 mm/turn.
