Specifications
| Throughput per hour: | Up to 3 m3 solids |
|---|
Huber COANDA Grit Washer RoSF 4
Grit separation and dewatering in one system
- Reduced disposal costs
- Utilisation of the Coanda effect ensures high grit removal efficiency.
- Less than 3 % organic content
- High solids throughput

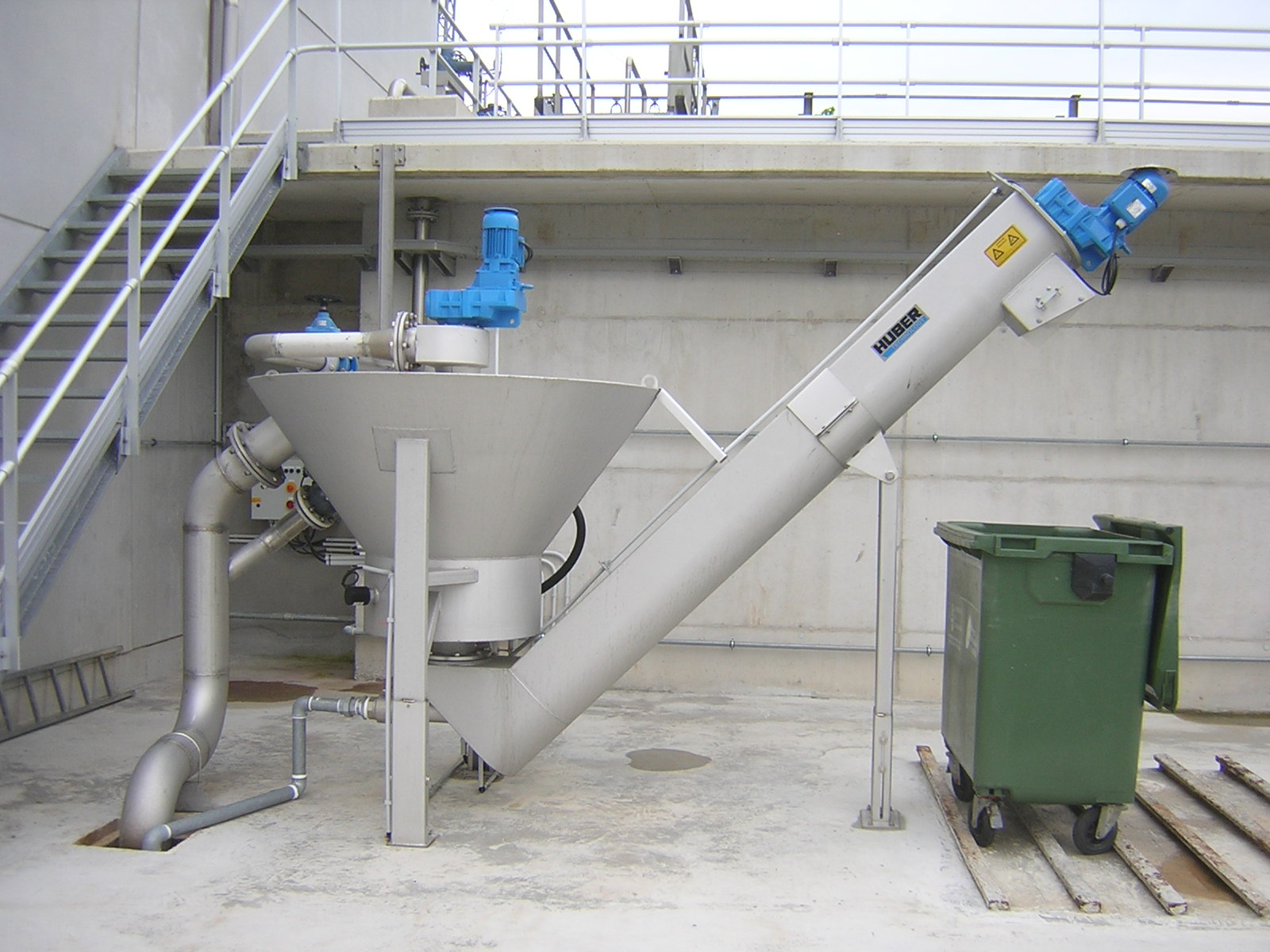

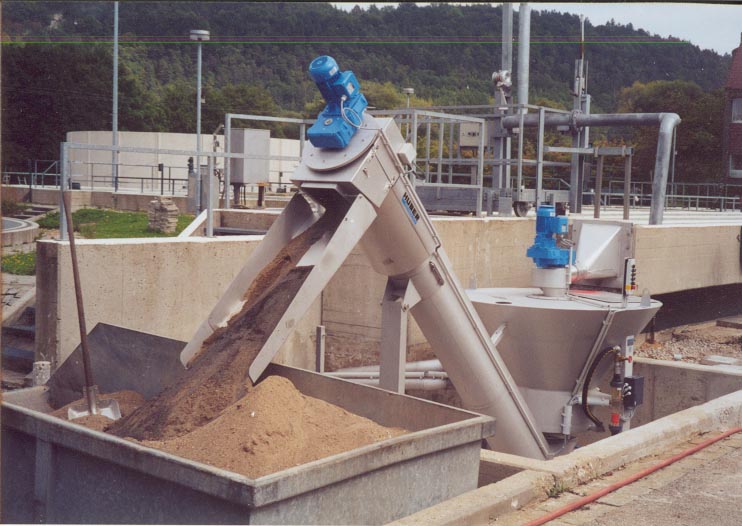

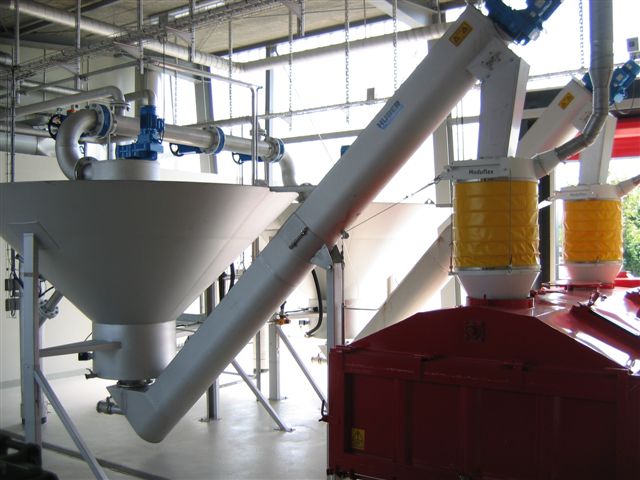

The HUBER Coanda Grit Washer RoSF4 combines grit classifying and grit washing in a single and compact unit. By using the Coanda effect the process of classifying can be com bined with the process of sorting to ensure a continuously high separation efficiency and outstanding washing performance.
Benefits:
- No additional preceding screening required (e.g. < 4 mm)
- High grit and gravel yield
- Suitable for treatment of grit from sewers, gully waste, road sweepings
- No crushing of stones and gravel inside the plant
- The screw is supported on both ends for minimised wear.
- Optional grit removal even during grit feeding due to on-line grit level measurement
- Encapsulated, odour-free plant
- Separate organics discharge allows for separate further treatment of organics
- Large diameter screws for a high solids throughput
- Stainless steel stirrer and screw
