Specifications
| Sludge volume reduction: | > 85 % |
|---|---|
| Thickening results: | > 6 % DR |
| Specific power consumption: | < 0.03 kWh/m³ |
| Wash water pressure: | < 3 bar |
| Separation efficiency: | > 97 % |

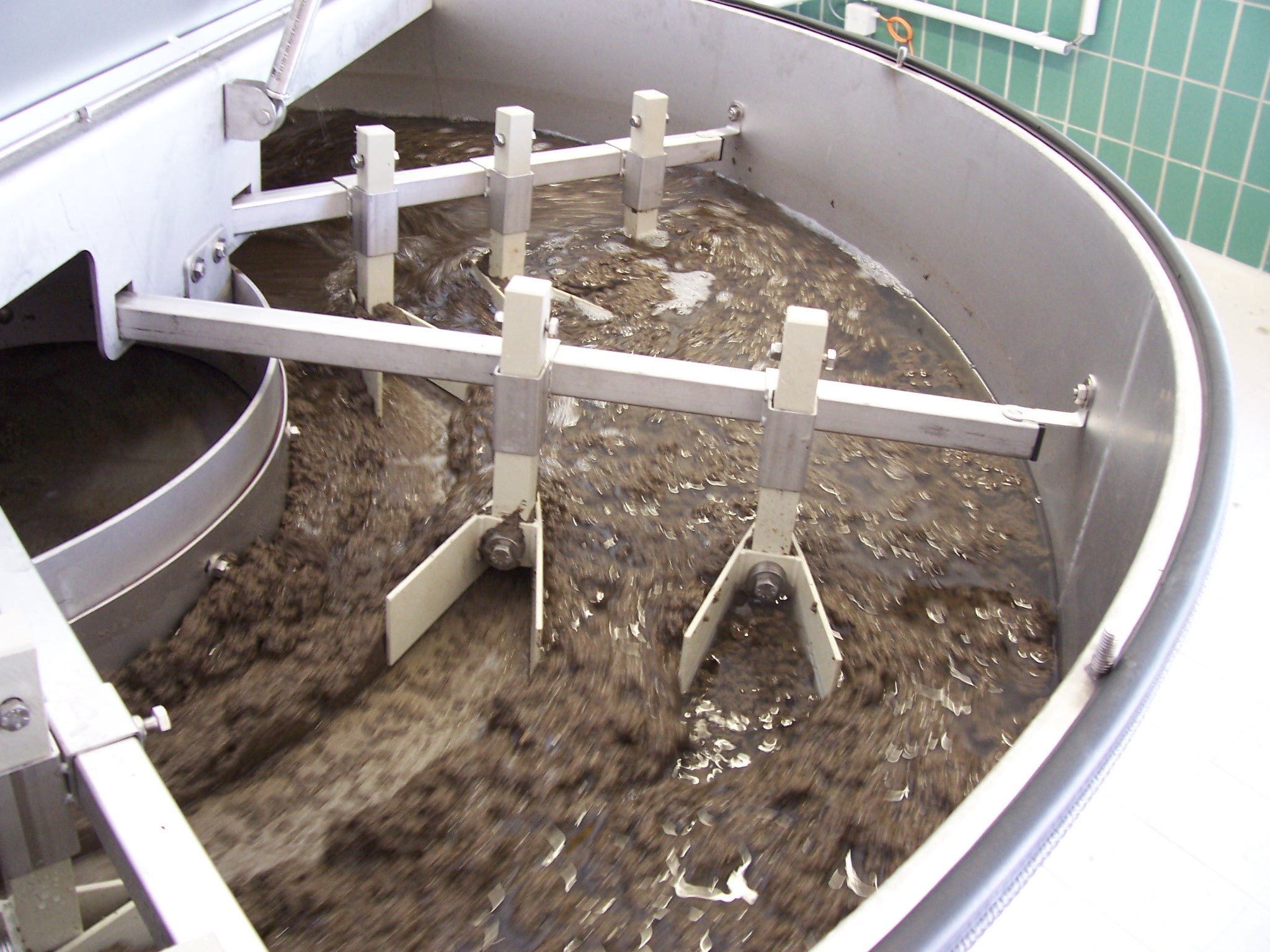

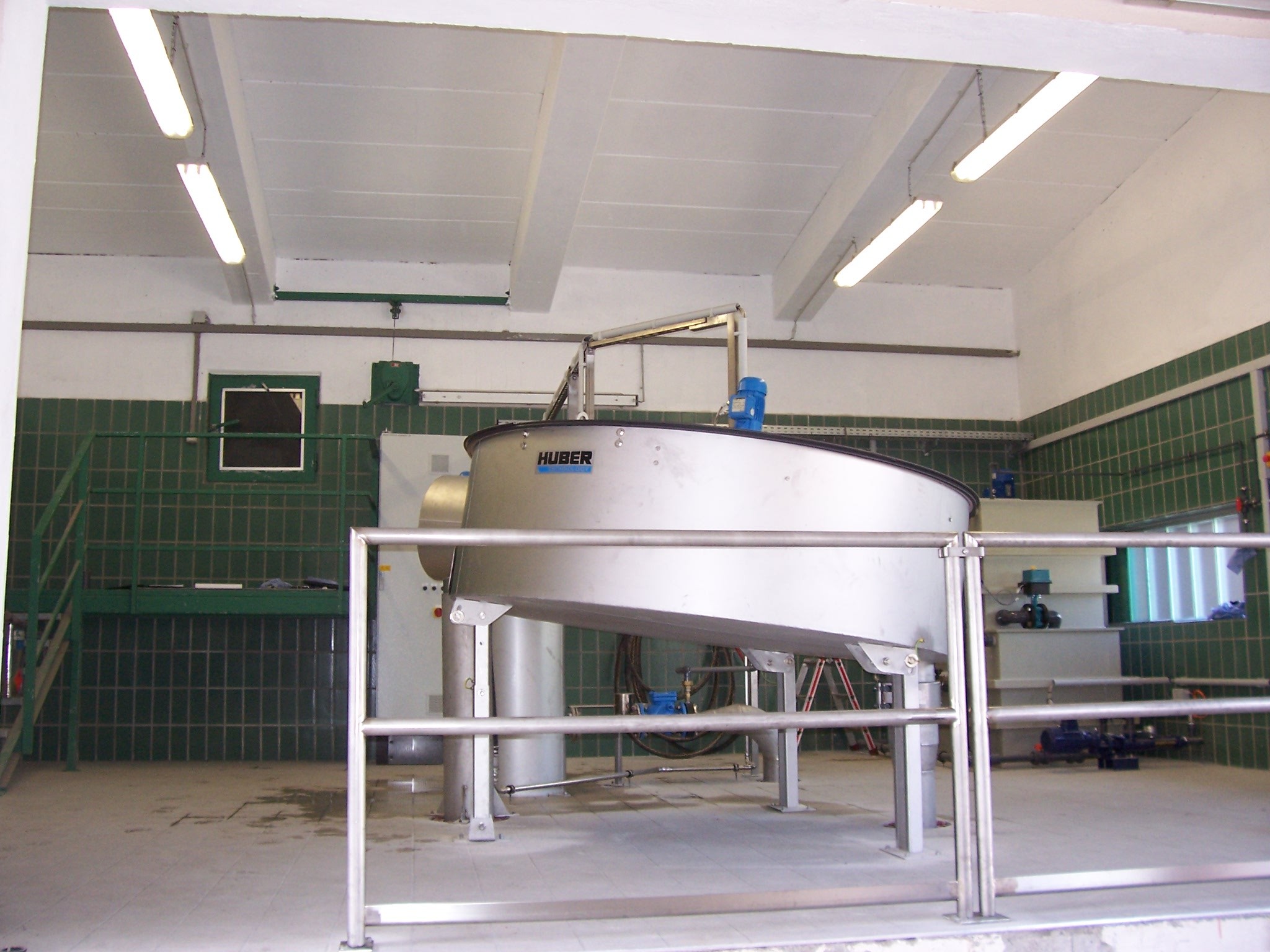

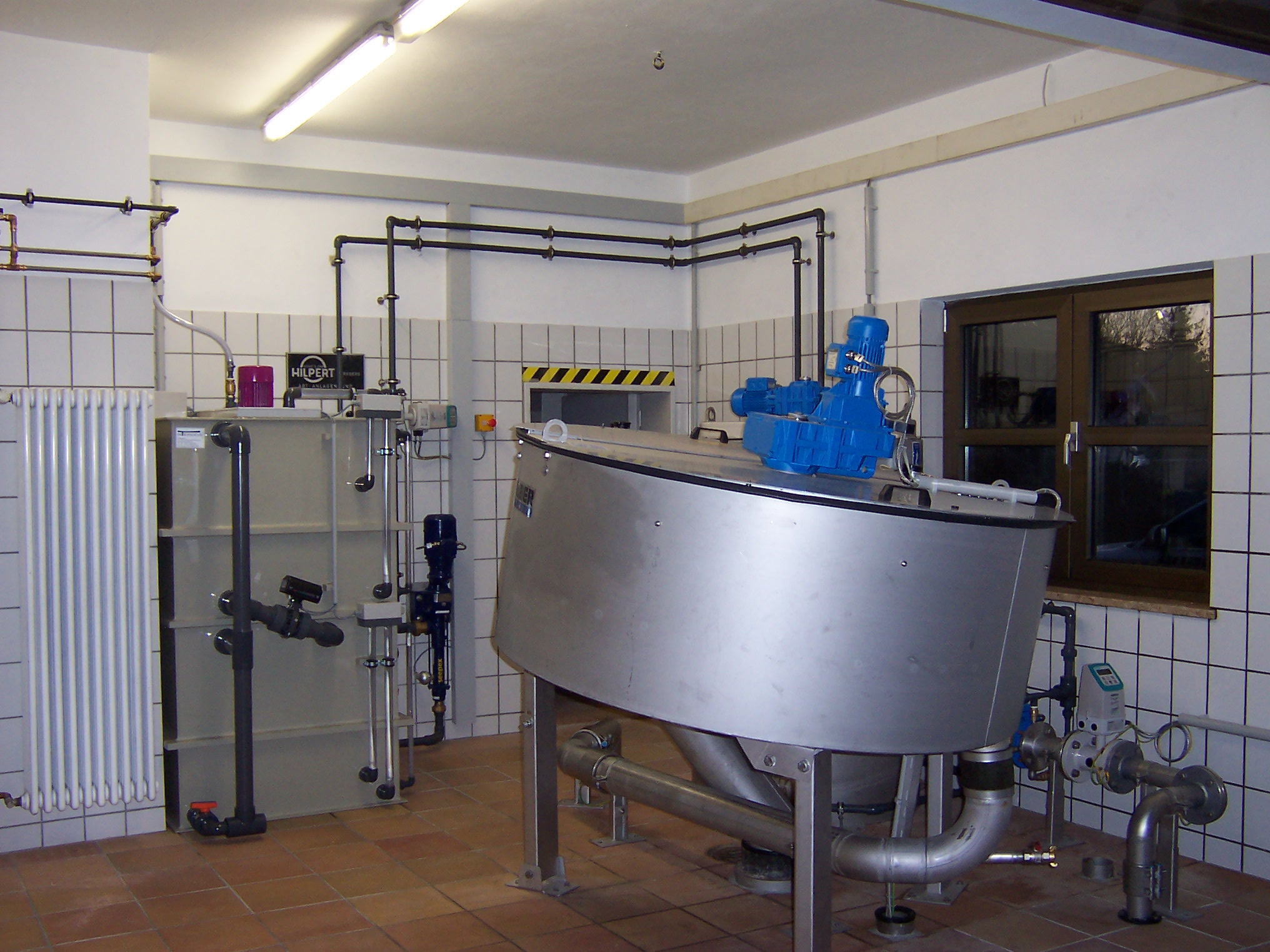

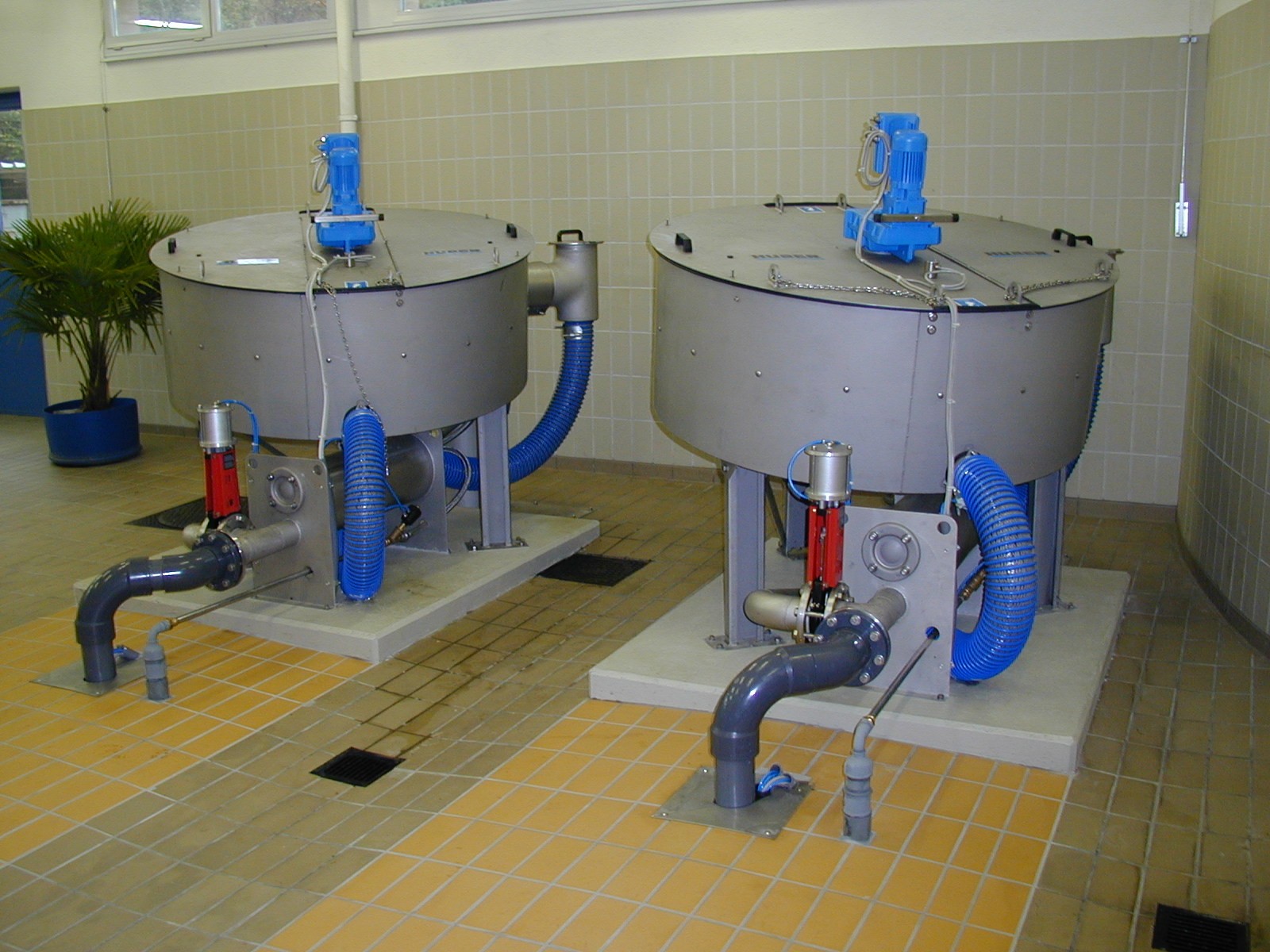

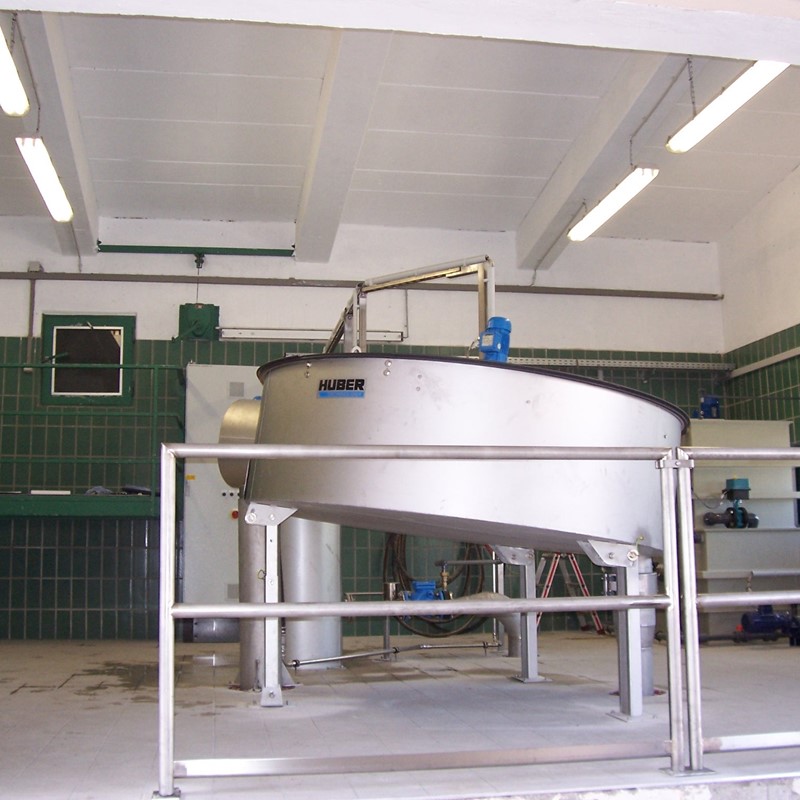

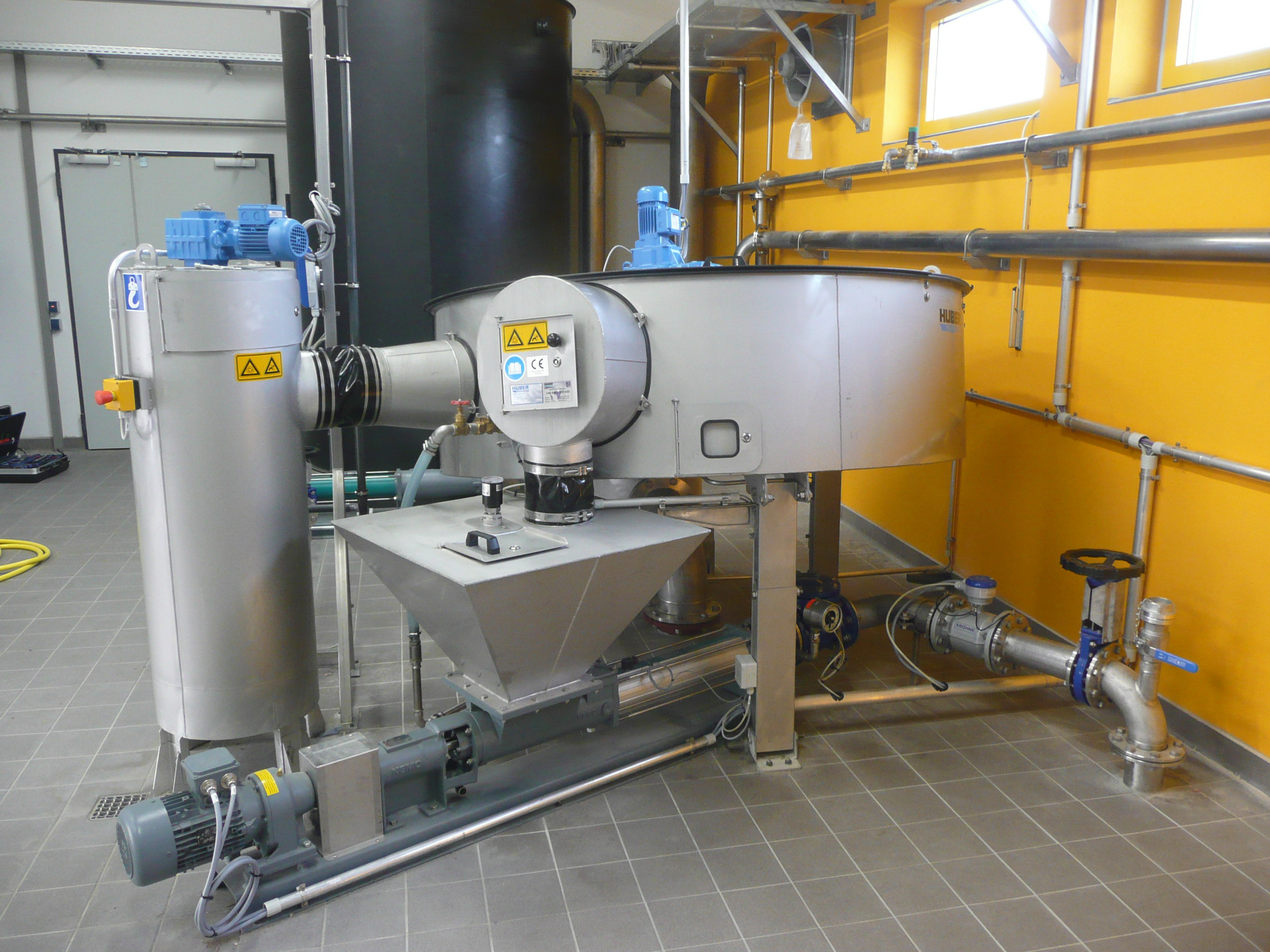

HUBER Disc Thickener S-DISC
Sewage sludge thickening
- compact, enclosed unit
- reliable operation, minimised operator attention
- low operation costs
- high throughput capacity up to 40 m³/h
Good sludge thickening is required as a prerequisite for the efficient further treatment of sewage sludge, for example in digesters, and is also necessary where liquid sewage sludge is transported to further treatment steps or utilisation.
Benefits:
- Low polymer consumption
- Minimum operator attendance requirements of less than 10 minutes a day
- Wash water demand < 5 % of sludge throughput
- Filtrate water can be used as wash water for the spray bar
