Specifications
Diameter total /effective: 346 / 295 mm
Installation height above pipe: 46 mm
Overall height: 76 mm
Orifice: 10 mm
Thread: R 3/4" +1"
Air flow rate at standard operation condition: 2 - 12 Nm3/h
Max overload / maintance air flow rate: 15 Nm3/h

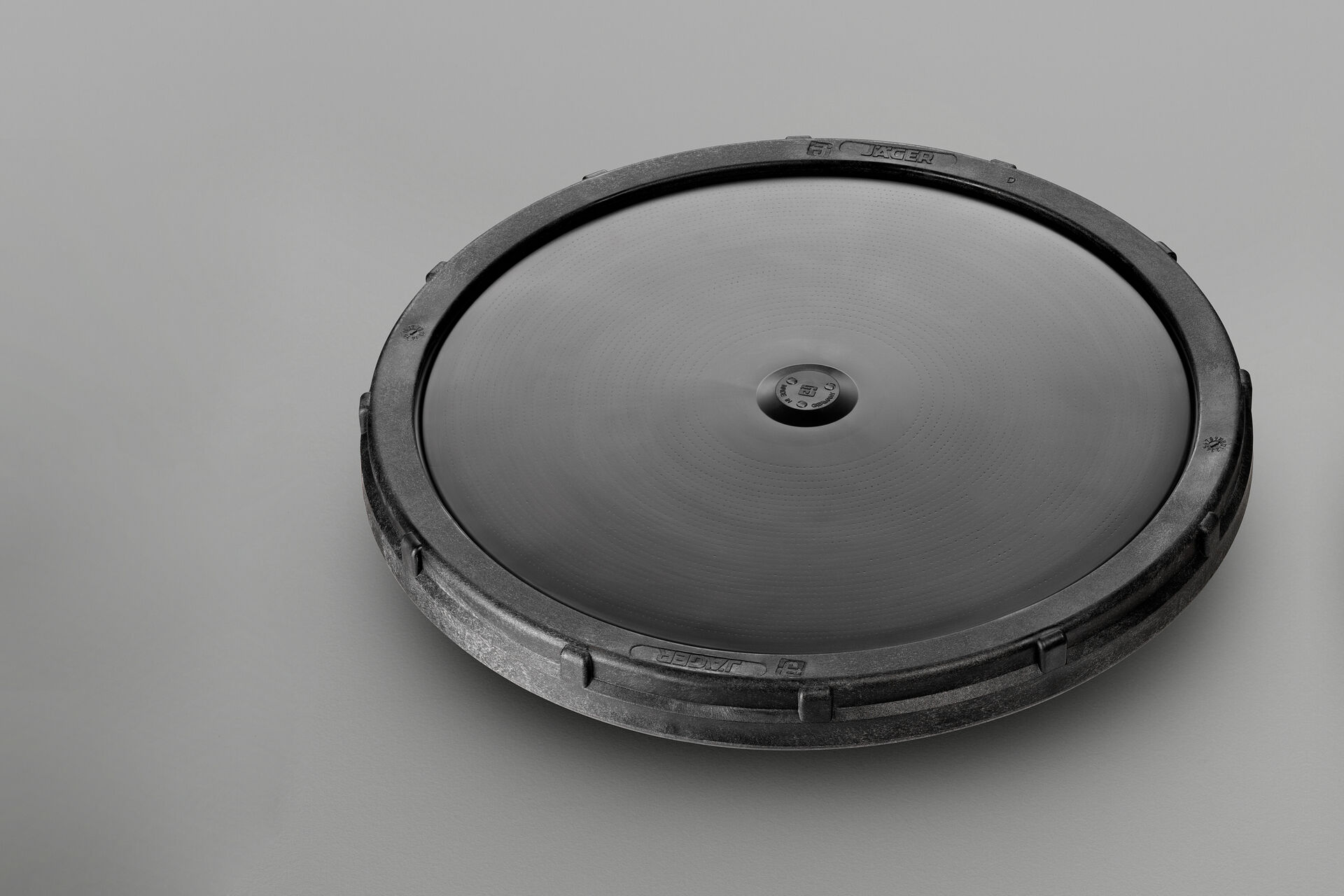

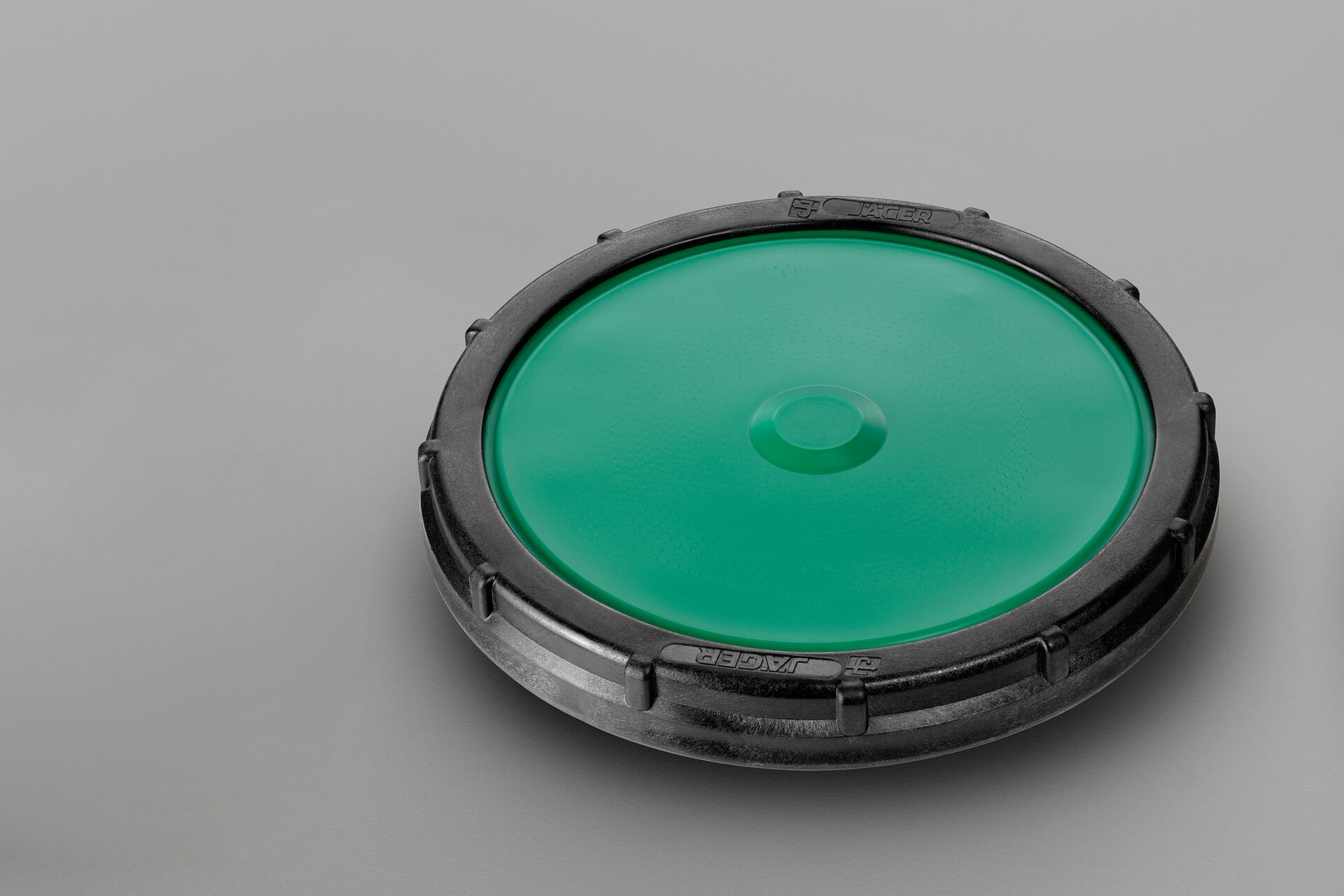

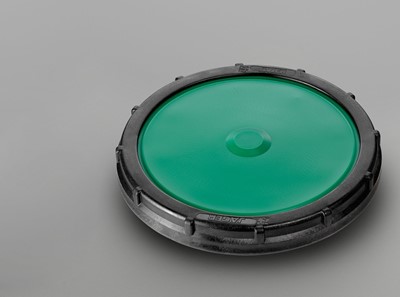

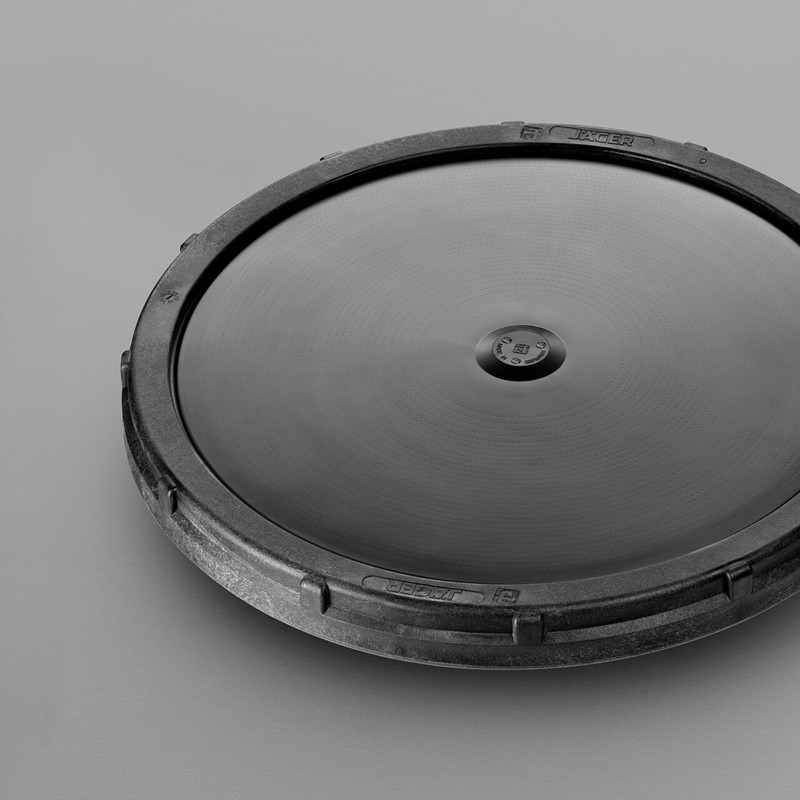

​JetFlex® HD 340 Disc Diffuser

An important element in biological treatment plants is the aeration system.

The JetFlex® HD disc diffuser series is a fine-bubble aeration system operated by compressed air. It is used worldwide in municipal and industrial wastewater treatment plants.

The aerators combine low design, installation and maintenance costs with reliability, durability and efficiency – for intermittent and continuous aeration.

The disc aerators can be equipped with an optional check valve that prevents backflow of sludge water into the pipeline even if the diaphragm is defective.

To increase the efficiency of existing aeration systems, we also offer retrofit kits and exchange membranes.

(Read more)

Benefits:

  • Different perforation types according to operating conditions and requirements
  • Precise slits for high oxygen input and low pressure drop

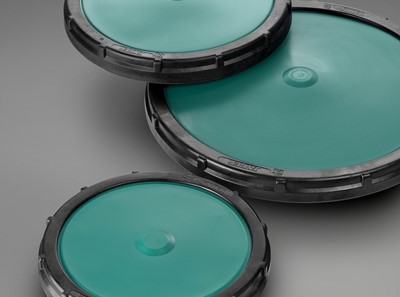

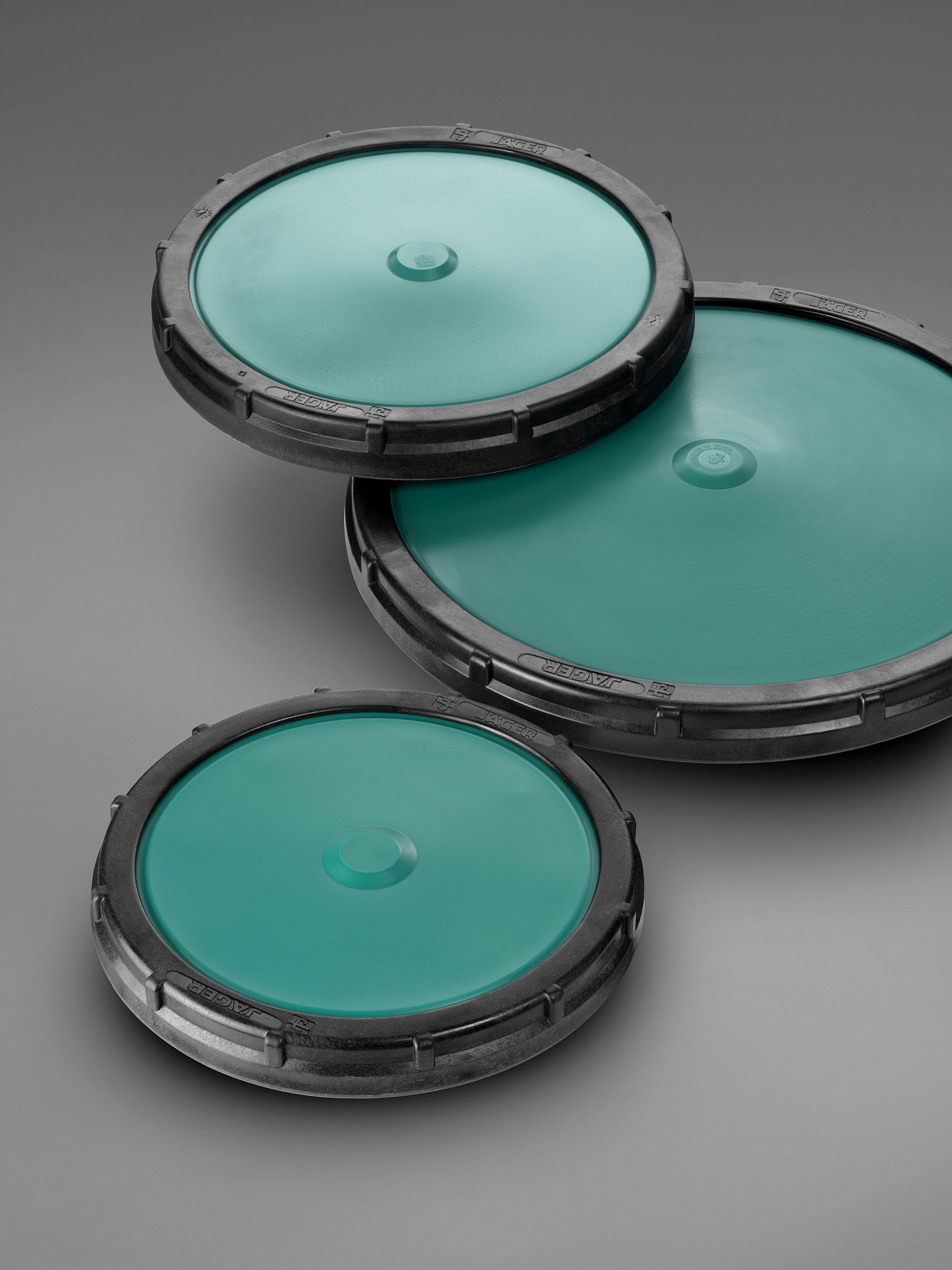

  • Active diameters from 184 mm, over 218 mm to 295 mm
  • Selection of standard and special materials: EPDM, silicone and FKM
  • Softener-free membrane made of silicone
  • Glass fiber reinforced plastics for highest chemical and thermal resistance
  • Check valve (optional)
  • Wide range of connection options for plastic and steel pipes thanks to extensive range of accessories
