Specifications
Material: EPDM / Silicone / PUR
Tube diameter: 65 mm
ID - Sleeve: ~ 65 mm
Wall thickness (EPDM): 1,9 ± 0,15 mm
Wall thickness (Silicone): 1,5 ± 0,15 mm
Wall thickness (PUR): 0,75 ± 0,025 mm

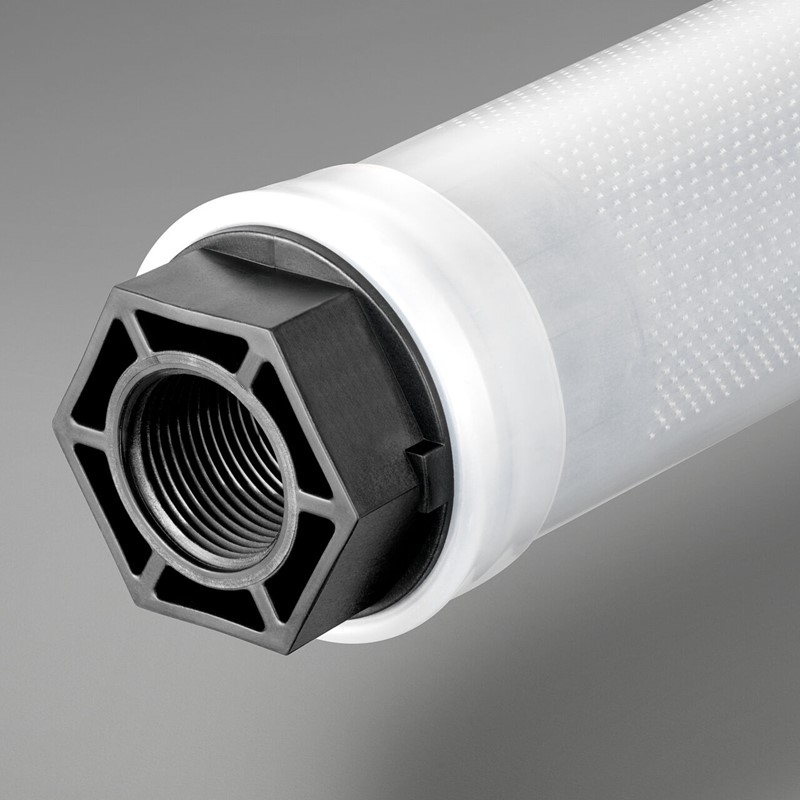

​JetFlex® TD 65-2 G Tube Diffuser

The JetFlex® TD series of tube air diffuser is a fine bubble aeration system that uses compressed air. The tube diffuser combine cost-effective design, low installation and maintenance costs with reliability, durability and efficiency.

They are suitable for both intermittent and continuous operation.

We also offer replacement membranes to increase efficiency in existing aeration systems.

(Read more)

Benefits:

  • Different types of perforations according to the operating conditions
  • Precise die cut openings for high oxygen transfer efficiency and low head loss
  • Low head loss due to grooved PP-support tube
  • Realisation of high diffuser density possible
  • Active length from 200 – 1200 mm with standard length of 500 mm, 750 mm and 1000 mm
  • Standard diameter of 65 mm and 90 mm
  • Assembly or connection to round or square steel pipes possible
  • Various standard and special membrane materials: EPDM, Silicone, PUR, NBR and FKM
  • PTFE coatings possible
  • Reliability even in the highest temperature ranges
